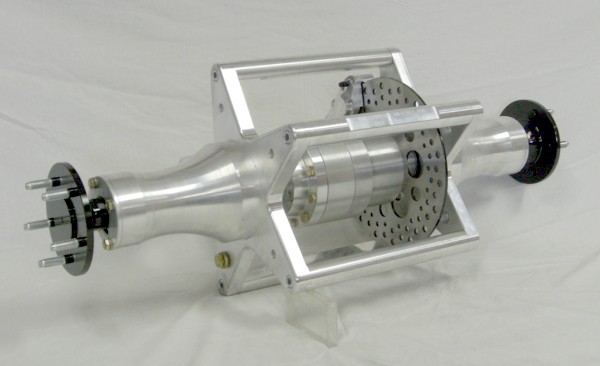

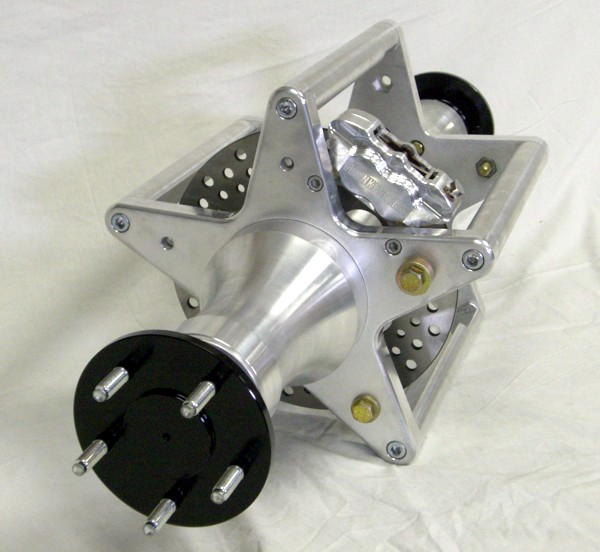

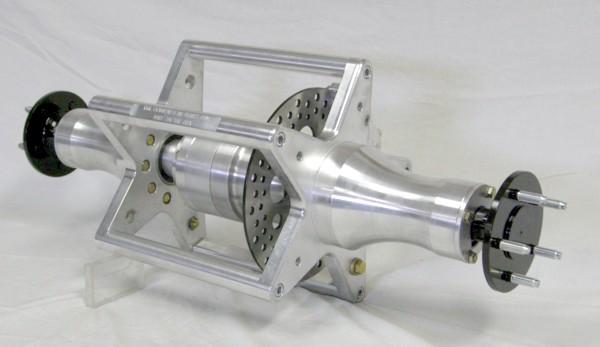

FRANKENSTEIN 36" HOT ROD 200 Trike Rear end.
PATENT PENDING.

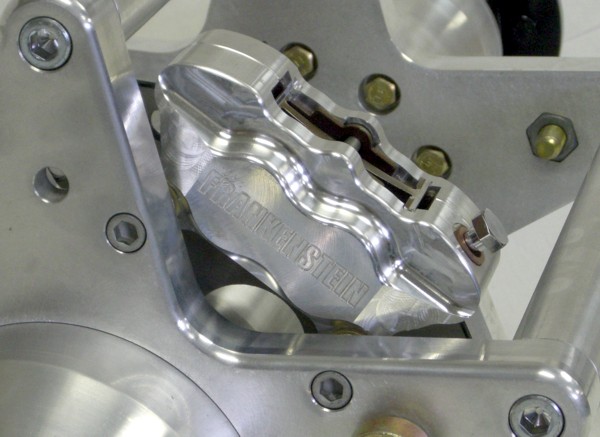

It is made from 6061 T6 Billet Aluminum, has Dana differential, 9" Ford Street / Strip axles with a bolt pattern of 5 studs on 4 bolt circle, wheel studs are - 20 (Ford car), weighs 98 pounds and is 36" wide, Machine finish with HHI 4 piston caliper and stainless steel rotor $ 3950.-

Warranty
One year unlimited miles from date of purchase.

FOR MORE INFO, CALL US,  Ph: 913-352-6788 or E- mail us at

info@frankensteintrikes.com

36" HOT ROD 200

 36" wide Rear End for V Rods and 180 to 200 tire bikes, 12" wide center. We recommend using at least 8" wide rear wheels with 3 1/4" to 4 1/2" back spacing, with this rear end.
Must use 70 tooth pulley when used on V Rod!

$ 3950.-

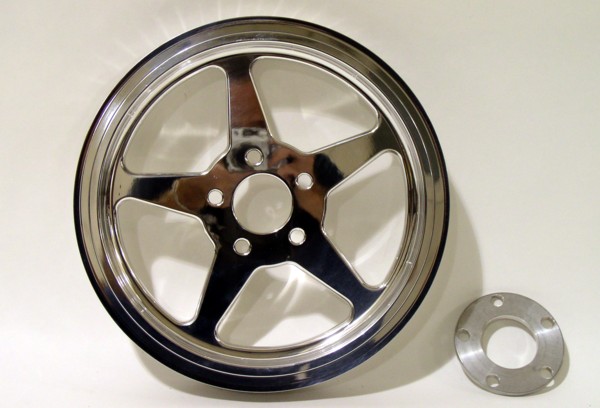

We offer the 70 tooth pulley and 1/4" thick spacer that is needed for installation on V Rod.  $ 272.-







+++++++++++++++++++++++++++

Click on Trike for more pictures.



Add $ 450.- for Outboard Brakes.

If you have recently purchased a rear end and would like to upgrade to Outboard Brakes $ 520.-




Outboard Brakes shown mounted on rear end.
